| Thread Diameter Size (TDZ) | #10 | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 | Special Feature | Long Shank |
| Thread Standard | NF | Tool Type | High Performance Tap |
| Overall Length (OAL) | 4″ | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-5/16″ | Coating | Black Oxide |
| Usable Length (LU) | 1.303″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Applicable Material | | Stainless Steel | | Series/List # | 398 |
| Cutting Edge Material | HSS | Thread Size | #10 - 32 |
Product Features

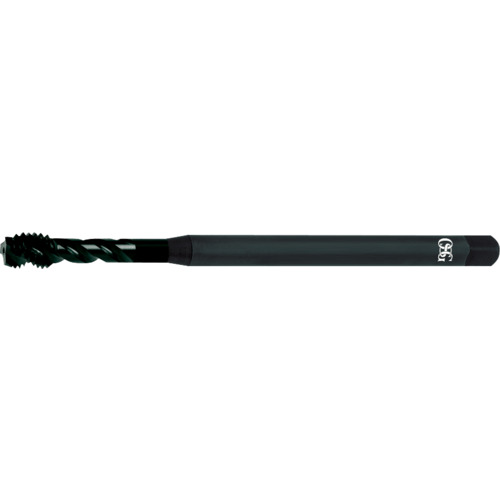

| Remarks | •EXOTAP® VA-3 Spiral Fluted Taps - Long Shank •A special relief combined with the flute construction provides free cutting, rapid chip removal in stainless steel •List 398 | Country of Origin | Brazil |
Shipping Info
LocalField10
0
Package Length
4.15000
Package Width
.40000
Package Height
.40000
Package Weight
0.03
