| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 20 | Special Feature | Long Shank |
| Thread Standard | NC | Tool Type | High Performance Tap |
| Overall Length (OAL) | 6″ | Chamfer | 2.5P-3P |
| Thread Cutting Part Length (THL) | 1-1/2″ | Coating | Black Oxide |
| Usable Length (LU) | 1.496″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Applicable Material | | Stainless Steel | | Series/List # | 398 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 20 |
Product Features

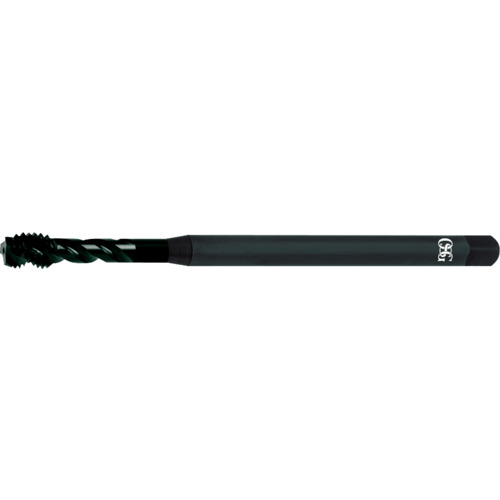

| Remarks | •EXOTAP® VA-3 Spiral Fluted Taps - Long Shank •A special relief combined with the flute construction provides free cutting, rapid chip removal in stainless steel •List 398 | Country of Origin | Brazil |
Shipping Info
Additional Fees and Notes
0
Package Length
6.00000
Package Width
.55000
Package Height
.50000
Package Weight
0.085
