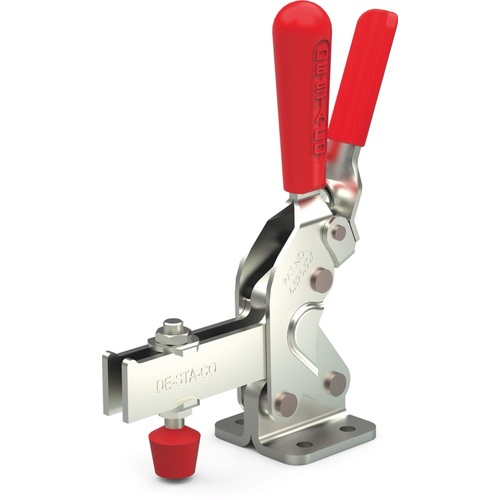

Toggle Clamp - Model 2010-UR Straight Line U-Shape Bar Style; 1400 lbs Holding Capacity
| Style | Vertical with Release Lever Catch | Mounting Diameter | 0.34″ |
| Type | Toggle Clamp | Mounting Length | 1.25″ |
| Arm | 2.62″ | Mounting Width | 1.78″ |
| Height Under Clamp Arm | 1.70″ | Overall Width | 2.62″ |
| Holding Capacity | 1400 lbs | Spindle Size | M10 or 3/8″ |
| Overall Height | 9.08″ | Base Length | 2.53″ |
| Overall Length | 7.51″ | Maximum Clamping Thickness | 1.70″ |
| Spindle | .78″ | Toggle Lock Plus Lever | Yes |
| Thread Size | M10 | Accessory Fastener Included | 240208-M M10 × 1.50 |
| model_no | 2010-UR | Bar Type | Flanged |
| Bar Style | U-Shape | Clamp Arm Length | 3.55″ |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Length
9.00000
Package Width
1.60000
Package Height
2.10000
Package Weight
2.9
